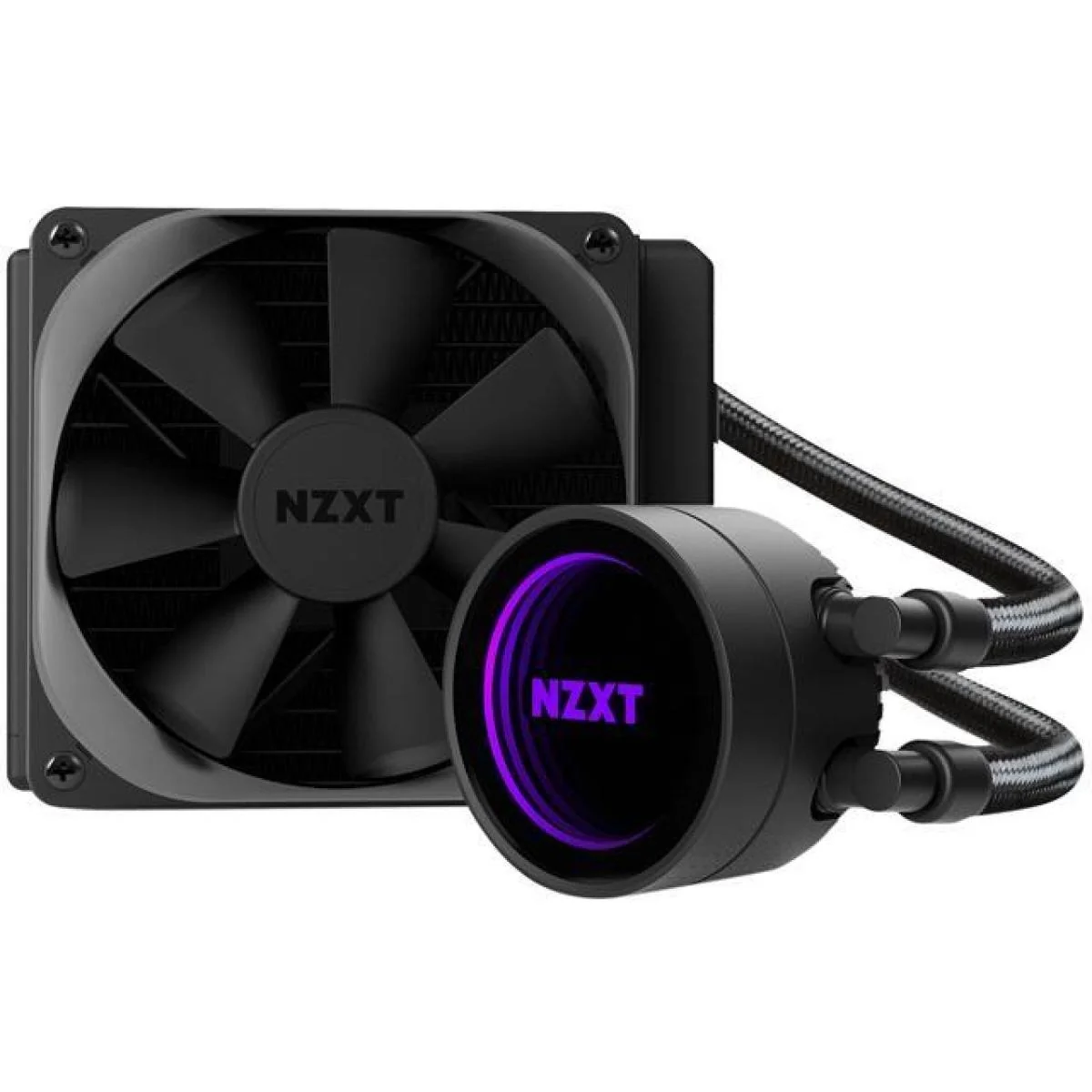

NZXT Kraken M22 120mm All-In-One RGB CPU Liquid Cooler
Kraken M22 120mm RGB AIO CPU Liquid Cooler
Short Description: 120mm AIO CPU liquid cooler featuring a 3000 ± 300 RPM pump, 120mm fan with speeds up to 2000 ± 300 RPM, aluminum radiator and RGB Infinity Mirror lighting.
Features & Specifications
| Feature | Details |
|---|---|
| Cooling Type | All-In-One closed-loop liquid cooling system with a 120mm radiator. |
| Radiator | Aluminum radiator measuring 152 × 120 × 32mm. |
| Pump | 3000 ± 300 RPM pump with a 3-pin DC connector. |
| Fan | 120mm fan with a speed range of 500–2000 ± 300 RPM and a 4-pin PWM connector. |
| Airflow | 18.28–73.11 CFM. |
| Static Pressure | 0.18–2.93 mm-H₂O. |
| Fan Noise | 21–36 dBA. |
| Cold Plate | Copper cold plate designed to help transfer heat away from the CPU. |
| Lighting | RGB Infinity Mirror lighting with 8 LEDs for the ring and logo. |
| Tubing | 400mm tubing made from ultra-low evaporation rubber with a braided nylon sleeve. |
| Intel Compatibility | LGA 115x, LGA 2011/2011-3 and LGA 2066. |
| AMD Compatibility | AM4, AM3/AM3+, AM2/AM2+, FM2/FM2+ and FM1. |
Full Description
120mm AIO CPU liquid cooler designed to provide effective processor cooling in a compact all-in-one configuration. The system combines a 120mm aluminum radiator with a copper cold plate to help transfer heat from the CPU into the liquid cooling loop.
The cooling system uses a pump rated at 3000 ± 300 RPM, while the 120mm fan operates from 500 to 2000 ± 300 RPM. The fan provides airflow of up to 73.11 CFM and static pressure of up to 2.93 mm-H₂O, while its Fluid Dynamic Bearing helps provide reliable operation.
The pump cap features RGB Infinity Mirror lighting with 8 LEDs for the ring and logo. RGB lighting can be managed through compatible software, while pump and fan cooling controls are handled through the motherboard rather than cooling controls in the software.
Why Choose It
- Compact 120mm radiator suitable for space-conscious PC builds.
- 3000 ± 300 RPM pump for circulating coolant through the closed-loop system.
- 120mm fan operating at up to 2000 ± 300 RPM.
- Copper cold plate designed to help transfer heat away from the CPU.
- RGB Infinity Mirror lighting for a distinctive PC setup.
- 400mm tubing with a braided nylon sleeve.
- Supports a range of compatible Intel and AMD CPU sockets.
Choose a 120mm AIO CPU liquid cooler for effective processor cooling, RGB styling and broad compatibility with supported Intel and AMD platforms.
Product Overview
Kraken M22 120mm RGB AIO CPU Liquid Cooler
Short Description: 120mm AIO CPU liquid cooler featuring a 3000 ± 300 RPM pump, 120mm fan with speeds up to 2000 ± 300 RPM, aluminum radiator and RGB Infinity Mirror lighting.
Features & Specifications
| Feature | Details |
|---|---|
| Cooling Type | All-In-One closed-loop liquid cooling system with a 120mm radiator. |
| Radiator | Aluminum radiator measuring 152 × 120 × 32mm. |
| Pump | 3000 ± 300 RPM pump with a 3-pin DC connector. |
| Fan | 120mm fan with a speed range of 500–2000 ± 300 RPM and a 4-pin PWM connector. |
| Airflow | 18.28–73.11 CFM. |
| Static Pressure | 0.18–2.93 mm-H₂O. |
| Fan Noise | 21–36 dBA. |
| Cold Plate | Copper cold plate designed to help transfer heat away from the CPU. |
| Lighting | RGB Infinity Mirror lighting with 8 LEDs for the ring and logo. |
| Tubing | 400mm tubing made from ultra-low evaporation rubber with a braided nylon sleeve. |
| Intel Compatibility | LGA 115x, LGA 2011/2011-3 and LGA 2066. |
| AMD Compatibility | AM4, AM3/AM3+, AM2/AM2+, FM2/FM2+ and FM1. |
Full Description
120mm AIO CPU liquid cooler designed to provide effective processor cooling in a compact all-in-one configuration. The system combines a 120mm aluminum radiator with a copper cold plate to help transfer heat from the CPU into the liquid cooling loop.
The cooling system uses a pump rated at 3000 ± 300 RPM, while the 120mm fan operates from 500 to 2000 ± 300 RPM. The fan provides airflow of up to 73.11 CFM and static pressure of up to 2.93 mm-H₂O, while its Fluid Dynamic Bearing helps provide reliable operation.
The pump cap features RGB Infinity Mirror lighting with 8 LEDs for the ring and logo. RGB lighting can be managed through compatible software, while pump and fan cooling controls are handled through the motherboard rather than cooling controls in the software.
Why Choose It
- Compact 120mm radiator suitable for space-conscious PC builds.
- 3000 ± 300 RPM pump for circulating coolant through the closed-loop system.
- 120mm fan operating at up to 2000 ± 300 RPM.
- Copper cold plate designed to help transfer heat away from the CPU.
- RGB Infinity Mirror lighting for a distinctive PC setup.
- 400mm tubing with a braided nylon sleeve.
- Supports a range of compatible Intel and AMD CPU sockets.
Choose a 120mm AIO CPU liquid cooler for effective processor cooling, RGB styling and broad compatibility with supported Intel and AMD platforms.
